PRODUCTS
Mechanical Type
Mechanical Type

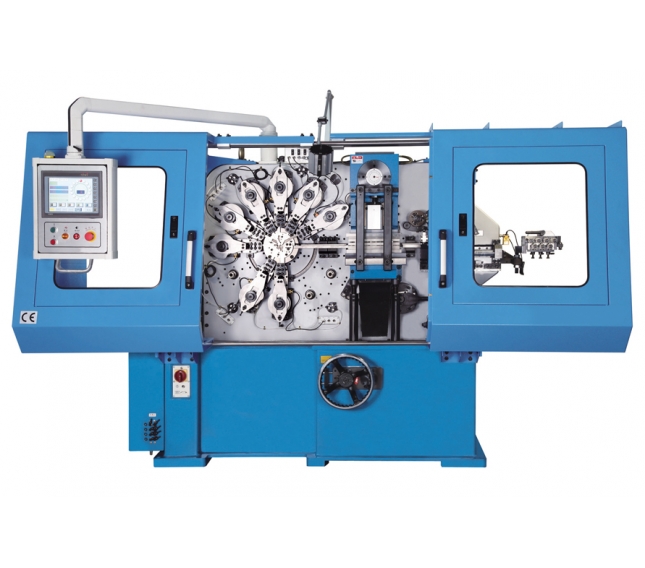

Multi Forming Machine
GSM-36T
GSM-36T
● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
● Optional safty cover
Model | GSM-36T | |
Wire Capacity | Ø 0.6-3.2 mm | |
Strip Capacity | 0.3-1.5x30 mm | |
Hardness of Wire (Carbon) | 80C | |
Axes | Mechanical Type | |
Max. Feed length | 200 mm | |
Max. Production rate | 300 RPM | |
Slide check sensor | Optional | |
Punching Pressure | 15T | |
Motor capacity | Press | 5.0 kw |
Cam | ||
Feed | ||
Dimension | 210x99x190 cm | |
Weight | 2500 kgs |
The specifications are subject to change without notice.
