CNC Big Spring Coiler
CNC Big Spring Coiler
CNC Spring Coiler

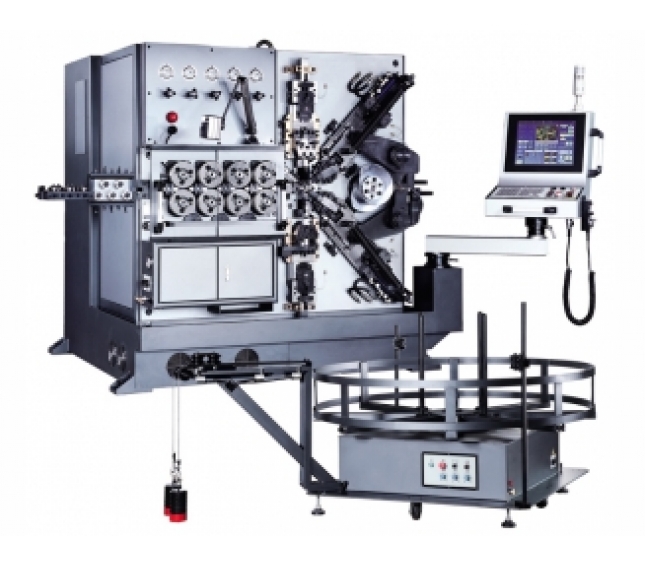

GHA-5120
GHA-5120 (φ6.0~12.0mm)
● 5 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch
● Windows system
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
Model | GHA-5120 |
Axes | 5 (can be upgrade into Windows system controller, optional) |
Wire dia. | Ø6.0-12.0 mm |
Coiling direction | Left / Right |
Max. spring O.D. | Ø200 mm |
Feed speed | 99 m / min |
Power | 380V; 3P; 50/60Hz |
Rotating/Twisting Cutoff | Yes |
Machine dimension | 336x224x230 cm |
Machine Weight | 13T |
The specifications are subject to change without notice.

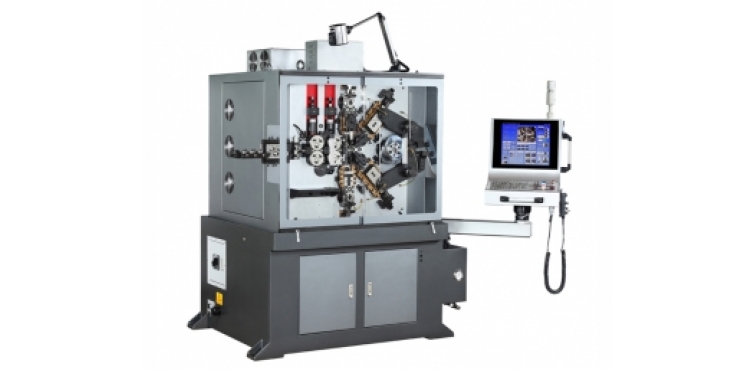

CNC Spring Coiler
Wire dia. Ø1.2-3.0mm
P.S.: We also have GW-730 (7 axes) and GW-930 (9 axes)
VIEW PRODUCT

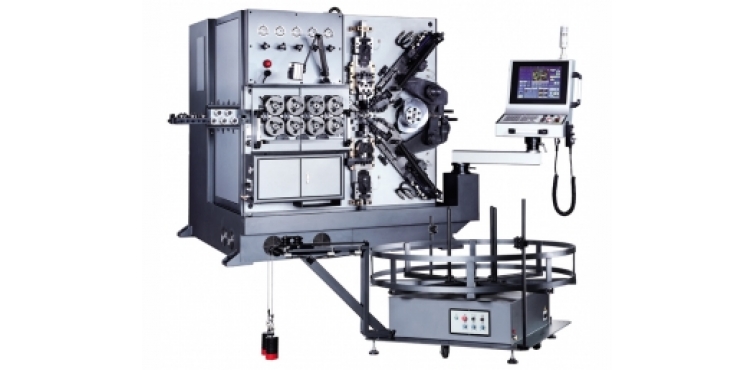

CNC Spring Coiler
Wire dia. Ø2.0-5.0mm
P.S.: We also have GW-750 (7 axes) and GW-950 (9 axes)
VIEW PRODUCT

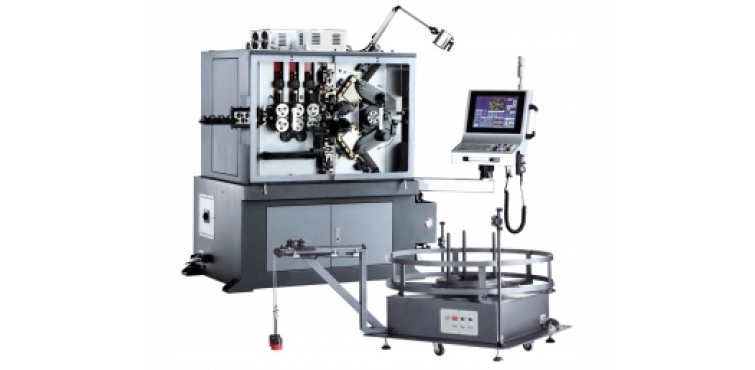

CNC Spring Coiler
Wire dia. Ø4.0-8.0mm
P.S.: We also have GW-780 (7 axes)
VIEW PRODUCT
