Mechanical Type
Mechanical Type

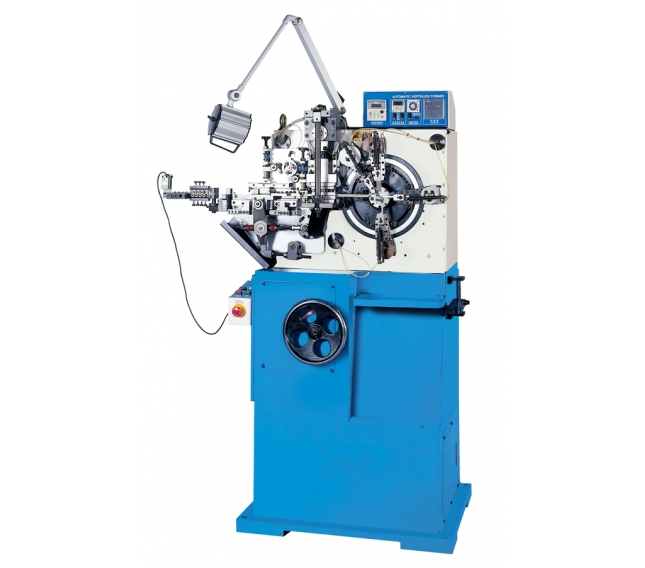

Multi Forming Machine
GSM-10T
GSM-10T
● Ideal for wire and strip
● Flexible slide position
● Fast production rate
● Precise and stable
● Continuos feeding, bending and stamping
● Auto lubrication
● Safety detection for material disconnection and jam
● Rear cam unit
Model | GSM-10T | |
Wire Capacity | Ø 0.1-1.0 mm | |
Strip Capacity | 0.04-0.5x10 mm | |
Hardness of Wire (Carbon) | 80C | |
Axes | Mechanical Type | |
Max. Feed length | 150 mm | |
Max. Production rate | 250 RPM | |
Slide check sensor | Optional | |
Motor capacity | Press | 2.2 kw |
Cam | ||
Feed | ||
Dimension | 130x90x180 cm | |
Weight | 700 kgs |
The specifications are subject to change without notice.
