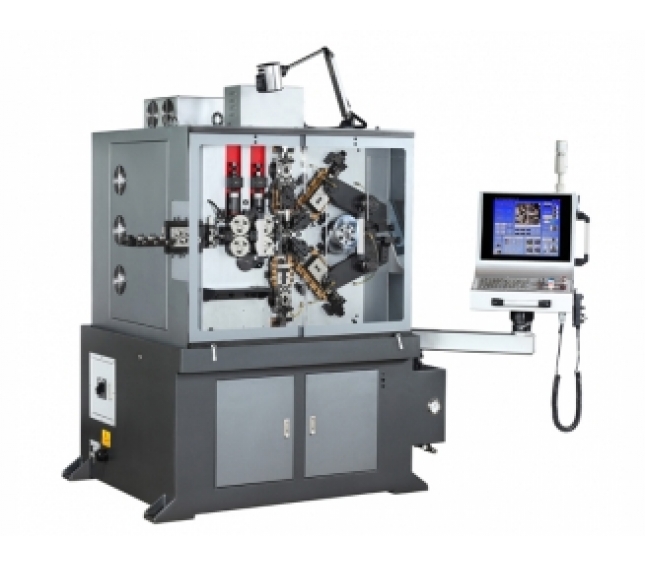

GHA-630
GHA-630 (φ1.2~3.0mm)
● 6 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch, Arbor
● Windows system
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
Model | GHA-630 |
Axes | 6 (can be upgraded into Windows system controller, optional) |
Wire dia. | Ø1.2-3.0 mm |
Coiling direction | Left / Right |
Max. spring O.D. | Ø60 mm |
Feed speed | 93 m / min |
Power | 220V; 3P; 50/60Hz |
Rotating/Twisting Cutoff | Yes |
Machine dimension | 205x166x200 cm |
Machine Weight | 2.3 T |
The specifications are subject to change without notice.
CNC Spring Coiler
Wire dia. Ø2.0-5.0mm
P.S.: We also have GW-750 (7 axes) and GW-950 (9 axes)
VIEW PRODUCT
CNC Spring Coiler
Wire dia. Ø4.0-8.0mm
P.S.: We also have GW-780 (7 axes)
VIEW PRODUCT
CNC Spring Coiler
Wire dia. Ø6.0-12.0mm
P.S.: We also have GW-6120 (6 axes) and GW-8120 (8 axes)
VIEW PRODUCT
