CNC Big Spring Coiler

CNC Spring Coiler

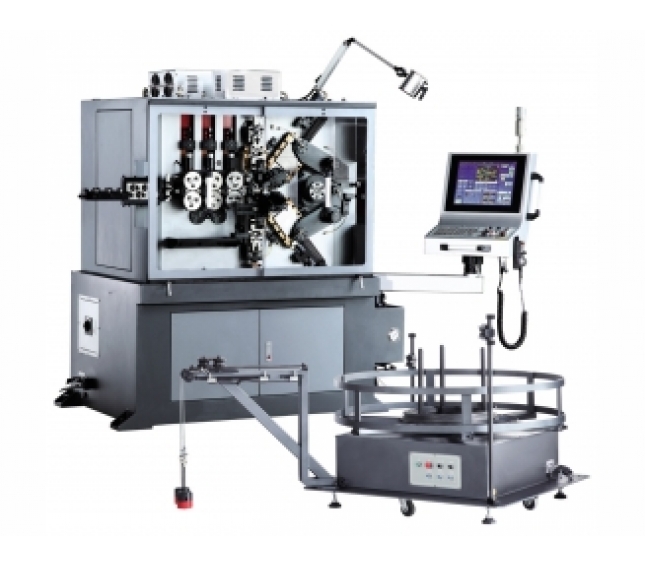

GHA-650

GHA-650 (φ2.0~5.0mm)
● 6 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch, Arbor
● Windows system
● Touch Screen with USB interface
● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut

BACK TO PRODUCTS

Model	GHA-650
Axes	6 (can be upgraded into Windows system controller, optional)
Wire dia.	Ø2.0-5.0 mm
Coiling direction	Left / Right
Max. spring O.D.	Ø90 mm
Feed speed	127 m / min
Production Speed	25~150 pcs / min
Rotating/Twisting Cutoff	Yes
Machine dimension	224x166x200 cm
Machine Weight	2.8 T

The specifications are subject to change without notice.

GHA-650 demo video

GHA-650 camera gauge operation video
