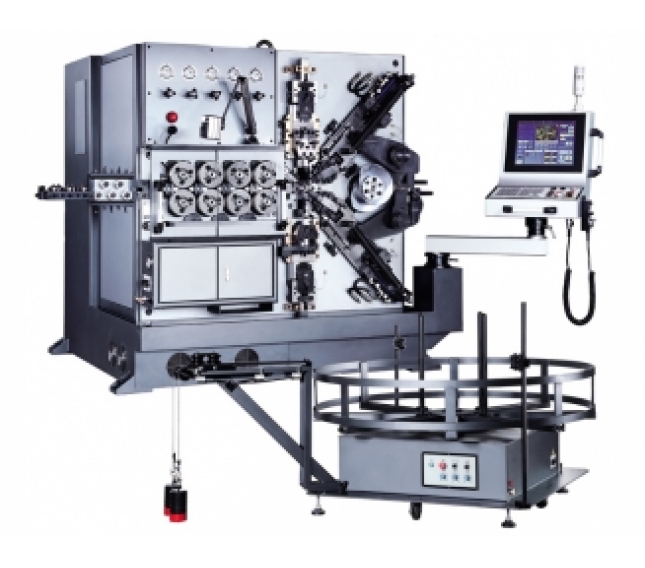

GHA-680
GHA-680 (φ4.0~8.0mm)
● 6 Axis: Feed Roller, Diameter, Cutter, Wedge pitch, Push pitch, Arbor
● Windows system
● Touch Screen with USB interface

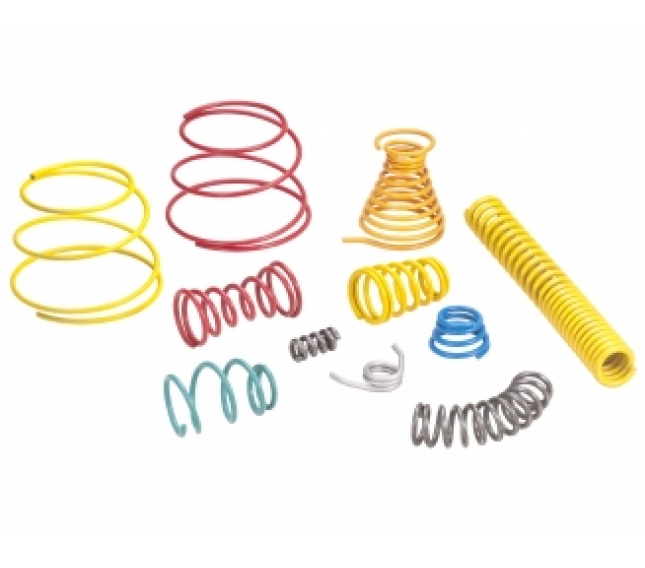

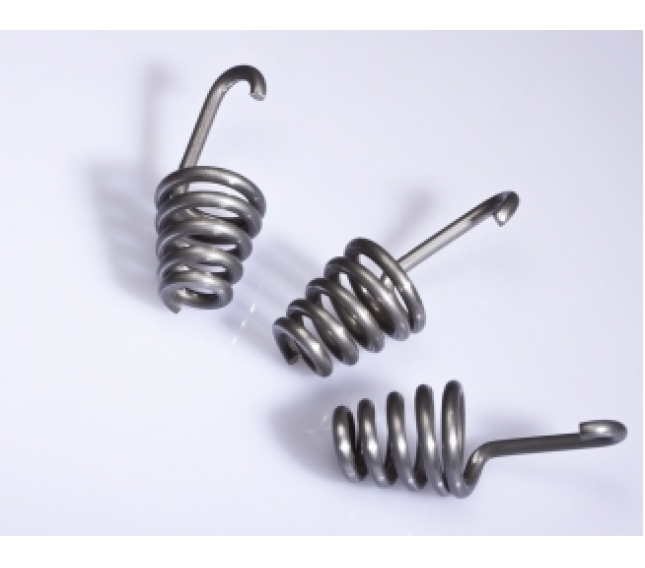

● Auto programming for various types of springs
● Program with chart of OD, Pitch, Turns, Free length and Closed-end
● Support rotary cut & arborless cut
Model | GHA-680 |
Axes | 6 axis (can be upgrade into Windows system controller, optional) |
Wire dia. | Ø4.0-8.0mm |
Coiling direction | Left / Right |
Max. spring O.D. | Ø160mm |
Feed speed | 100 m / min |
Production Speed | 20~100 pcs / min |
Rotating/Twisting Cutoff | Yes |
Machine dimension | 328x233x206 cm |
Machine Weight | 5.8 T |
The specifications are subject to change without notice.
